Metal Mesh Curtain for Restaurant Space Divider Screen in Canada

Metal Curtain Project for The Restaurant Space Divider Screen

Customer background: Mr. James owns a restaurant in Canada and checks out information of metal curtain product on our website. The metal mesh curtain needs to be used as a partition.

Customer idea: The holes should be as small as possible, made of stainless steel material, have one primary color, and should appear like a drape and hang. He sends photos of his restaurant.

Area size: Length 1m, 2.3m, 2.4m, 2.8m with a height of 2m, 2.3m, 3.3m

We are not purely involved with sales. We are customer engineers, and specifically, help customers who do not know much about the product. We must make plans based on the client’s project to meet their satisfaction.

Space divider solution idea: Analyze James’s engineering design. The restaurant exudes colors of warmth. The layout and design are simple but very welcoming. So, in terms of material, it is recommended to use stainless steel instead of aluminum, because stainless steel has a sense of weight and functionality. In terms of color, keep the original color of stainless steel. The brightness of stainless steel itself is more suitable for the restaurant. Regarding the specifications of the wire diameter and aperture, generally, we will recommend to customers wire diameters between 1mm and 1.2mm, but James needs a thicker wire diameter, so 1.5mm was selected, and the hole was made 7mm accordingly. If customers have questions about specifications and colors, we will send different metal mesh curtain samples for customers’ reference. Or, you can send pictures for confirmation until the customer is satisfied.

According to James’ project-style, color, and size, we’ve made the following specifications:

Window Size Metal curtain wire dia: 1.5 mm, Aperture: 7 mm Rail
Length Height Length Height Length
2.8m 3.3m 3.6m 3.2m 2.8m
2.4m 3.3m 3.6m 3.2m 2.4m
2.4m 3.3m 3.2m 3.2m 2.4m
2.3m 2.3m 3.1m 2.2m 2.3m
1m 2.3m 1.5m 2.2m 1m
1m 2.3m 1.5m 2.2m 1m
1m 2m 1.5m 1.9m 1m

Basis for size: The display of the metal curtain is beautiful with folds, generally 1.5 / 1.8 times the fold, so according to the length of the customer’s area x 1.5 / 1.8 is the length of the required metal curtain. The track occupies a height of 70cm if not affixed to the ground, and a height of 30cm above the ground can be left free. The length of the track can be the same as the length of the area.

Metal Curtain Installation: Installation is simple. Before purchasing, instructional installation pictures and videos will be sent to customers. We will send all required accessories for clients to use, as well as can give guidance during the installation process. If the customer has a ready-made track or does not plan to use the track, we will give installation advice according to the specific situation.

After discussing details regarding products and engineering, James is very interested in our metal curtain product and the quotation. James hopes to check out the sample to determine to make payment. We immediately check with the production department to produce the sample with the same specifications and send the similar specifications together for reference.

Customer Feedback: Very satisfied with the metal mesh curtains, the effect appears very good after decoration, and many of his clients love it.


  1. For customers who have a significant time-zone difference, we will communicate according to the customer’s preferred time to ensure that they can contact us at any time to solve any problem as quickly as possible.
  2. If the customer does not have specific requirements for the product, we will recommend the appropriate one according to the customer’s concept.
  3. If the customer needs a sample of metal mesh curtain, we will try our best to provide it so that the customer can see and test for themselves.
  4. Be a trusted partner of customers.

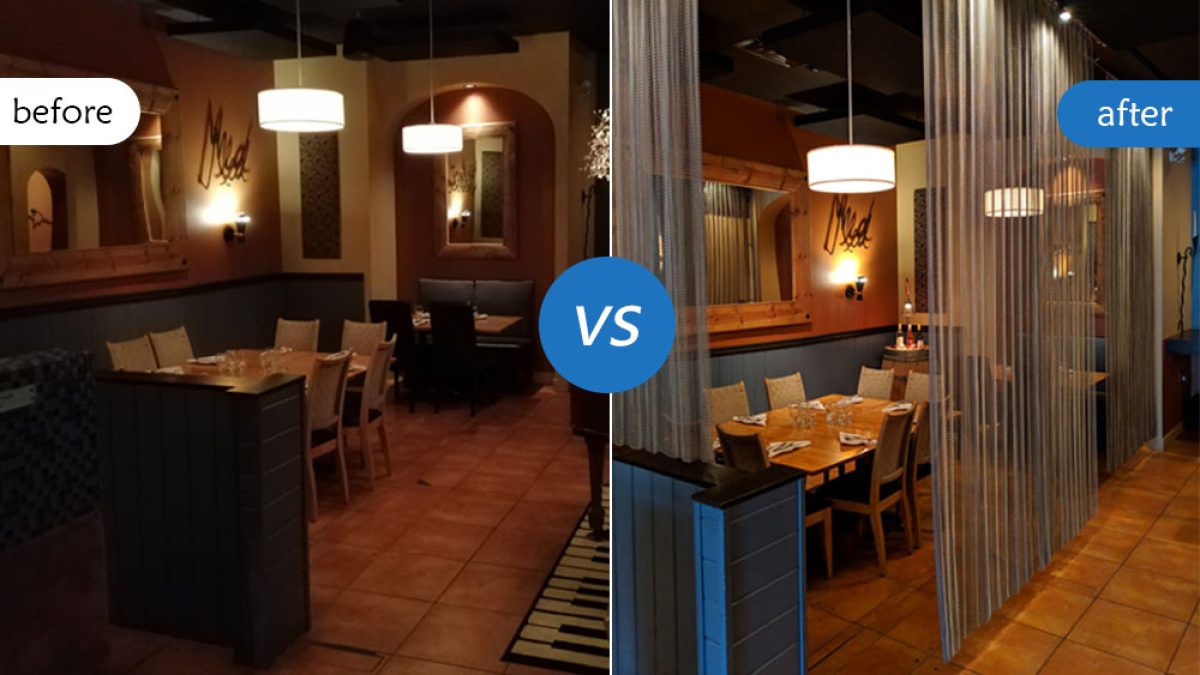

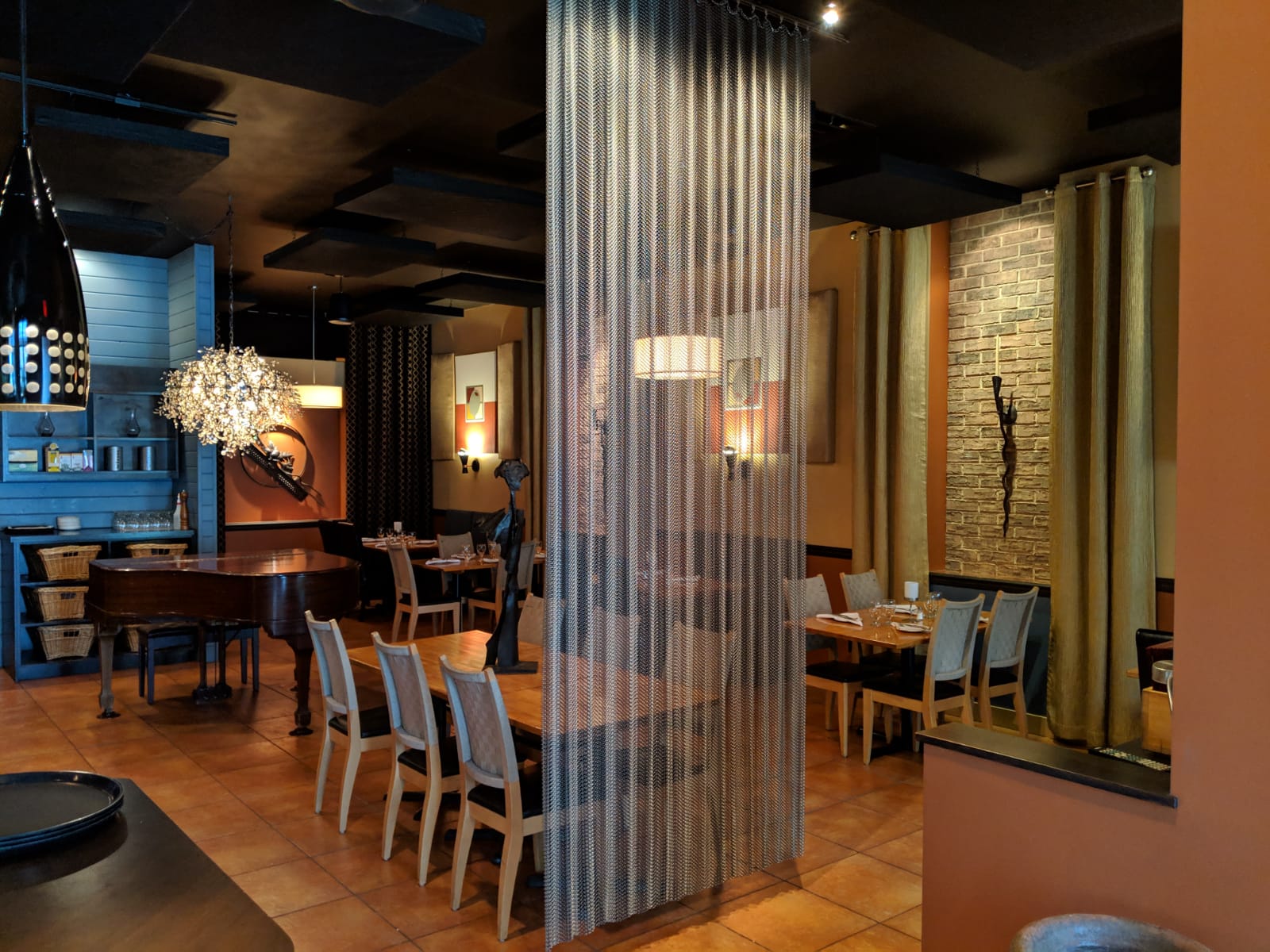

Final Project Effect

Product: Metal mesh curtain

Project information: This project case is located in an elegant restaurant in Canada, customer needs stainless steel material because it has weight and looks draped. Recommend the specification as follows:

  • Material: stainless steel
  • Wire diameter: 1.5mm
  • Aperture: 7mm
  • Height: 2.0m & 2.3m & 3.3m
  • Length: 2.3m, 2.4 & 2.8m
  • Provide rails and all accessories
  • Quantity: 110 sqm
