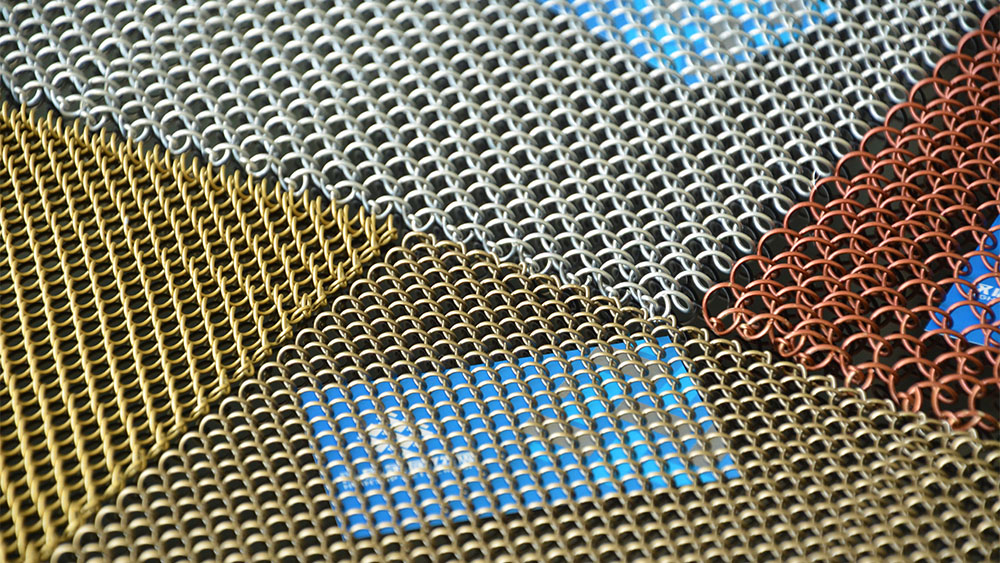

metal coil curtain

Architectural Cascade Coil Drapery - Metal Coil Curtain

Architectural cascade coil drapery, also known as metal coil curtain, is usually made from stainless steel wire or aluminum alloy wire, and the surface is electropolished, electrophoresed, painted, anodized, or spray painted. It can also be painted into various colors to match different architectural styles and designs. So it is an ideal decorative product for designers and architects.

Because of its gorgeous appearance, excellent rust resistance, and easy installation, metal coil drapery has unique uses in the field of architectural decoration, such as interior curtains, hotel halls, concert halls and lobby ceiling decorations, restaurant space divider or separators, exterior window cladding and wall coverings, fireplace mesh screens and shower curtains in the bathroom, etc. Metal coil curtain not only meet the decorative purpose, but also create excellent visual effect and comfortable atmosphere.

Hightop is a professional manufacturer and supplier of cascade coil drapery. We supply various materials, colors and sizes to meet the different styles and designs of various architectures. In addition, we provide complete metal coil curtain accessories for installation.

Architectural Cascade Coil Drapery Styles

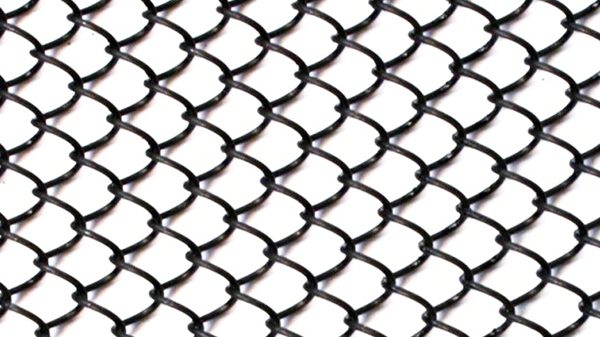

Material: Aluminum Alloy
Surface: Black powder coated
Wire diameter: 0.8-2.5 mm
Max Width: 12 m
Max Height:  30.48 m
Width Tolerance: ± .5″ (± 13 mm)
Length Tolerance: ±  1″ (± 25 mm)

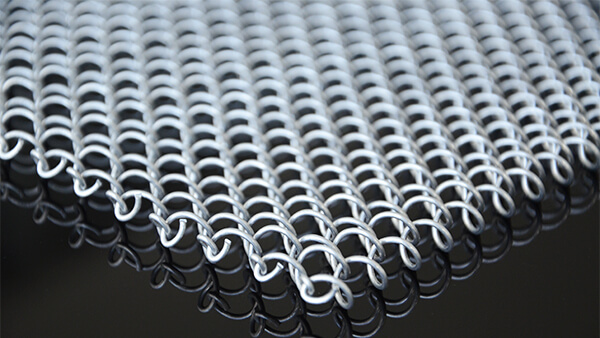

Material: Stainless Steel
Color: Bright
Wire diameter: 0.8-2.5 mm
Max Width: 12 m
Max Height: 30.48 m
Width Tolerance: ± .5″ (±13 mm)
Length Tolerance: ±1″ (±25 mm)

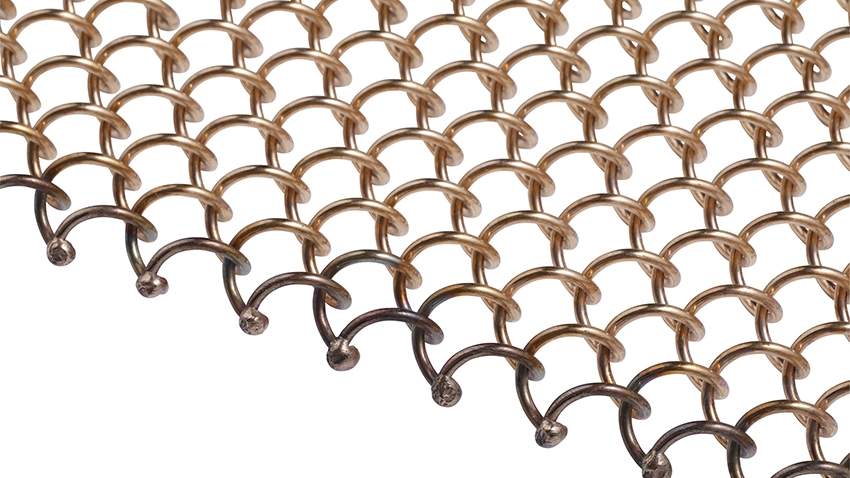

Material: Aluminum Alloy
Color: Golden
Wire diameter: 0.8-2.5 mm
Max Width: 12 m
Max Height:  30.48 m
Width Tolerance: ± .5″ (± 13 mm)
Length Tolerance: ±  1″ (± 25 mm)

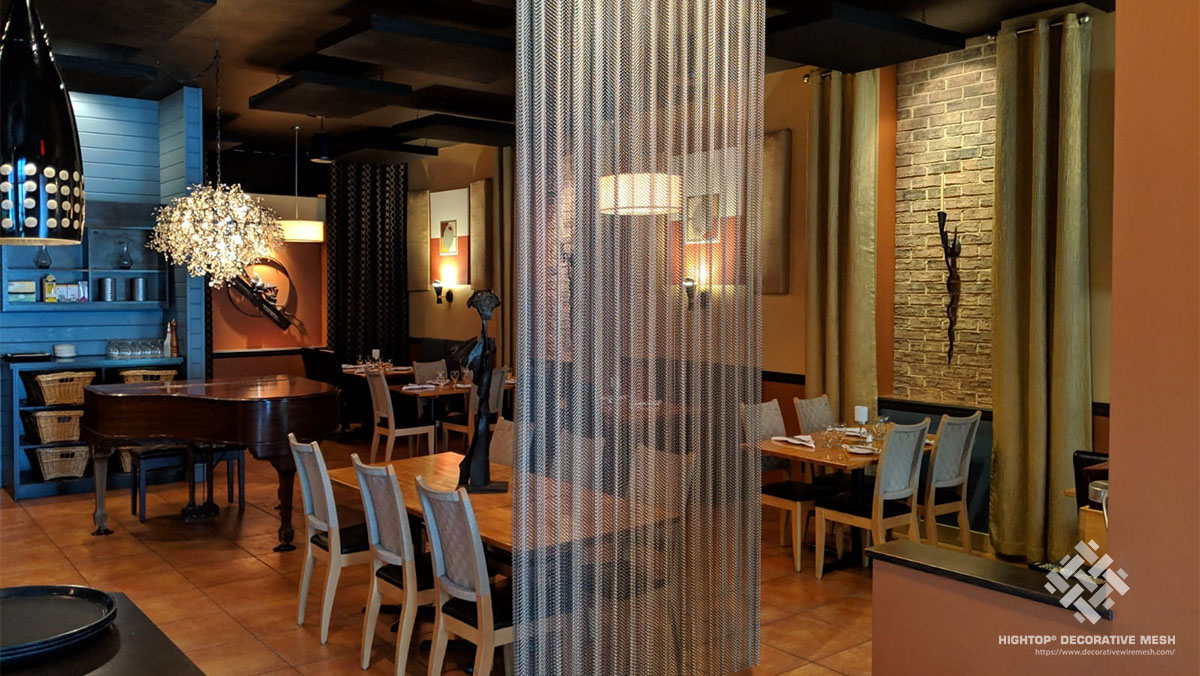

Metal Coil Curtain Used As Dividers

metal mesh curtains
metal mesh drapery
metal curtains dividers

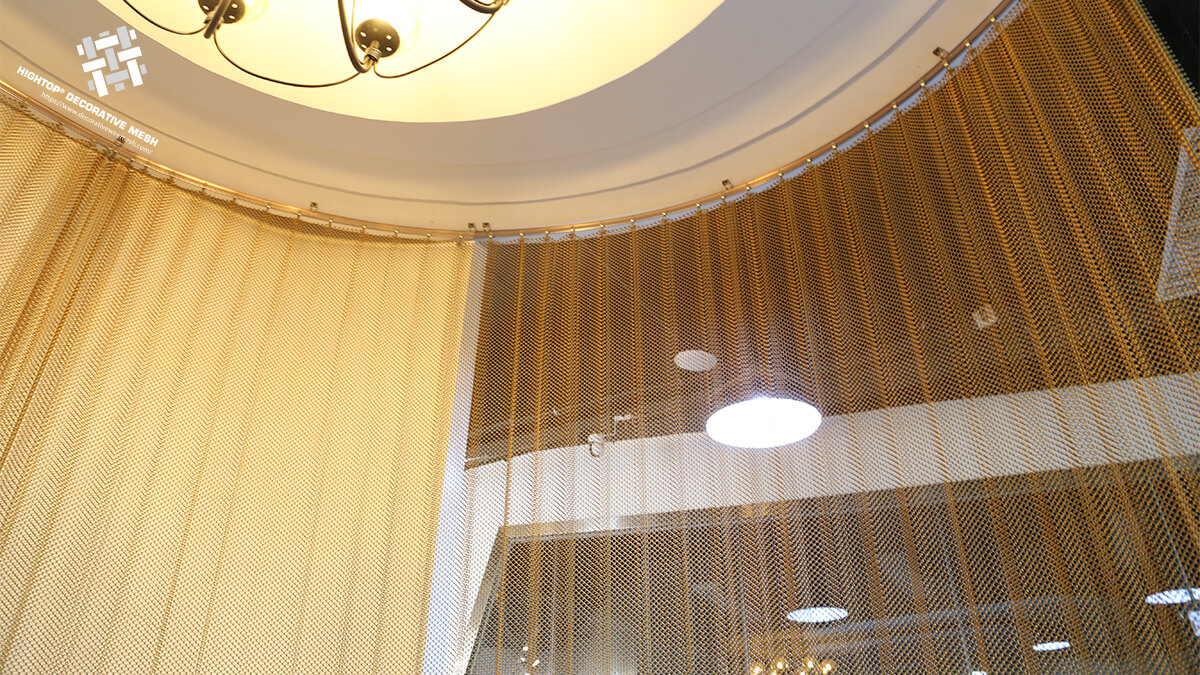

Architectural Cascade Coil Drapery
Metal Coil Curtain
bannerb3

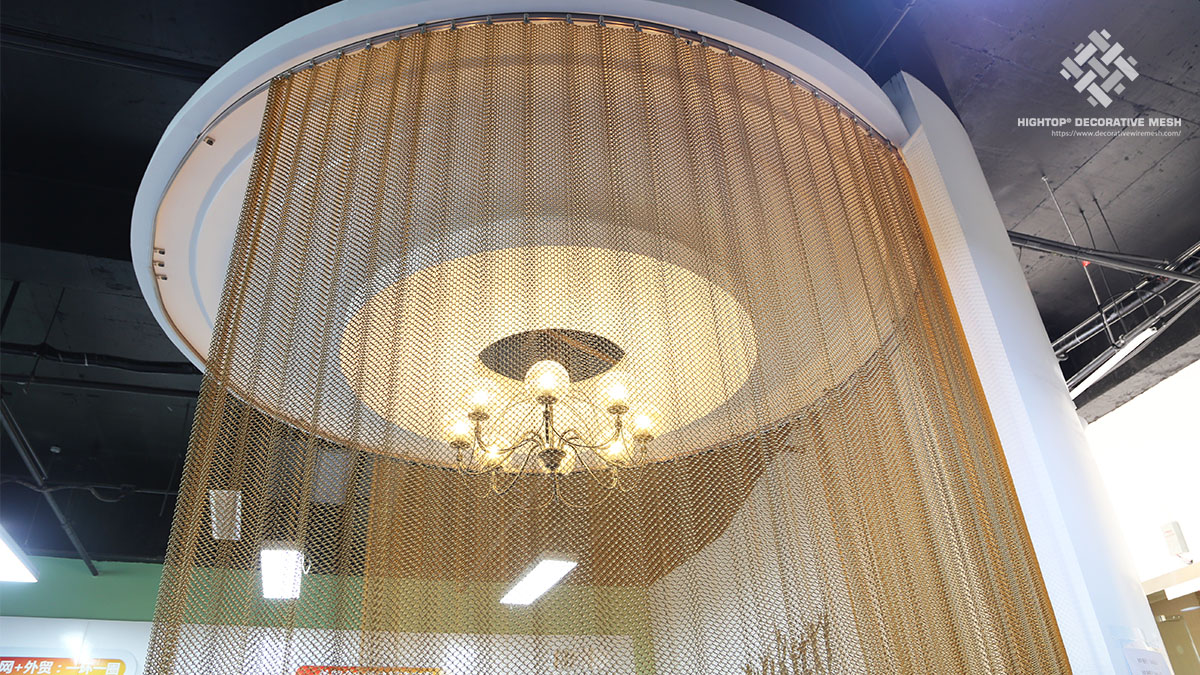

cascade coil chain curtain

PRODUCT DETAILS

Features of Architectural Cascade Coil Drapery

  • Light diffusion and good ventilation.
  • UV resistant and flame resistant.
  • Beautiful appearance and various colors.
  • Versatility and decorative effects.
  • Aesthetic appeal and functionality.
  • Finishes are beautiful and resilient.
  • Color never fading and paint never dropping.
  • Gorgeous and high-end.
  • Durability and flexibility.

metal curtain Architectural Cascade Structure

COMPLETE ACCESSORIES
metal curtain accessories

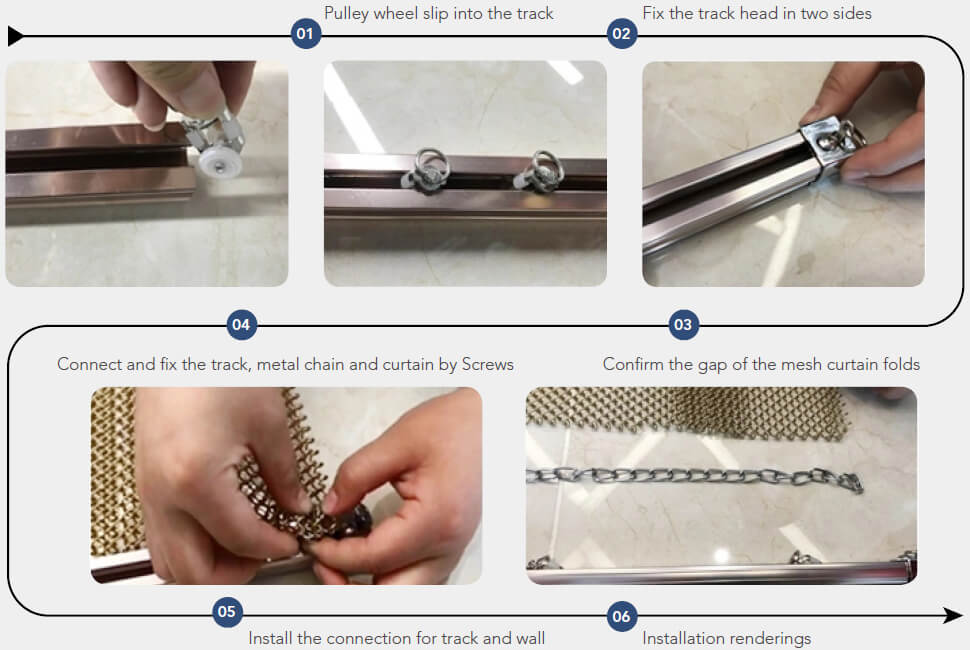

Cascade Coil Drapery Installation Guide
Metal Coil Curtain installation guide

Metal Coil Curtain Specifications

Opening Size Wire D Max. Open Area Weight kg/m2
W A B mm in. % Aluminum Stainless Steel Copper
3 4 6 0.8 0.031 1.17 3.51 3.97
4 6 8 0.8 0.031 0.88 2.64 2.98
4 6 8 1.0 0.039 61 1.37 4.11 4.64
7 7 0.8 0.031 0.83 2.50 2.81
5 8 10 1.0 0.039 66 1.10 3.30 3.73
6 9 12 1.0 0.039 70 1.32 3.96 4.47
6 9 12 1.2 0.047 70 1.90 5.70 6.44
7 1.0 0.039 73 1.18 3.54 4.00
7 1.2 0.047 69 1.70 5.10 5.76
9 12 1.2 0.047 78 1.50 4.50 5.08
9 12 1.4 0.055 78 2.04 6.12 6.92
12 12 1.2 0.047 80 1.50 4.50 5.08
9 1.6 0.063 1.56 4.68 5.29
12 1.8 0.073 1.83 5.49 6.20
12 2.0 0.079 2.26 6.78 7.66
13 1.8 0.073 74 2.10 6.30 7.12
21 21 1.2 0.047 85 0.63 1.90 2.15
21 21 1.4 0.055 82 0.88 2.65 3.00
21 21 1.8 0.073 80 1.47 4.42 5.00
15 30 2.0 0.079 60 2.00 6.00 6.78
16 3.0 0.118 66 4.90 14.70 16.61
18 2.5 0.098 84 2.10 6.30 7.12
30 30 2.5 0.098 1.77 5.30 6.00

REQUEST A QUOTE

We provide complete systems customized to architectural cascade coil drapery. Hightop collaborates with architects and designers to develop mesh solutions that most fully realize the conceptual intent. Our consultants also present possibilities that may not have even been considered and offer valuable expertise on how to properly specify architectural mesh for each.

metal coil curtain

Please feel free to get quote from us by the form below, we’ll get back to you as soon as possible.
