Architectural Rope Mesh Netting

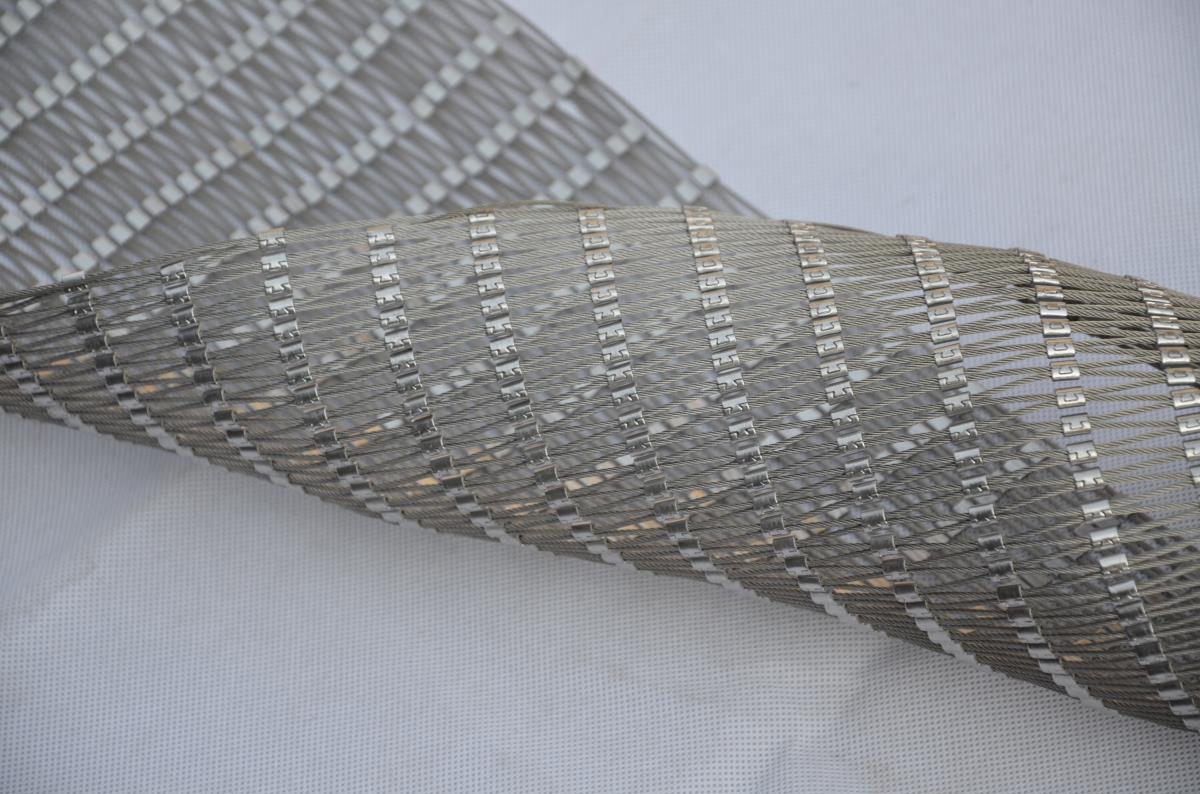

Architectural rope mesh made from stainless steel 304, 316 and 316L. The angle is usually 60°. Other angel also we can made according request. The rope net has a unique style and more strong security. The diamond hole pattern makes the mesh strong and durable. Different opening sizes can be customized to meet the different needs of customers. Widely used for zoo,The rope mesh are hand-made, there are two types.

  • Type: clip, woven
  • Material: stainless steel
  • Rope wire diameter: 1.0mm to 4.0mm etc.
  • Rope construction: 7 x7 and 7 x 19

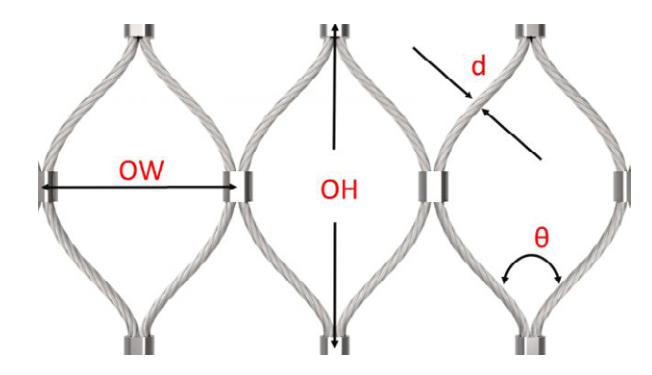

For measuring purposes the mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.
OW = Opening Width
OH = Opening Height
d = Cable Diameter
θ = 60° Angle

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 2×2 51×51 1600
3/32 2.4 3×3 76×76 920
3/32 2.4 2×2 51×51 920
5/64 2.0 2×2 51×51 676
5/64 2.0 1-1/2x 1-1/2 38×38 676
1/16 1.6 1-1/2x 1-1/2 38×38 480
1/16 1.6 1×1 25.4×25.4 480
3/64 1.2 1-1/2x 1-1/2 38×38 270
3/64 1.2 1×1 25.4×25.4 270

Features

  • Made of stainless steel, has good corrosion resistance
  • Flexible and strong
  • High security
  • long lasting
  • Easy to install
  • High temperature resistance, maximum temperature 2300ºF

Applications

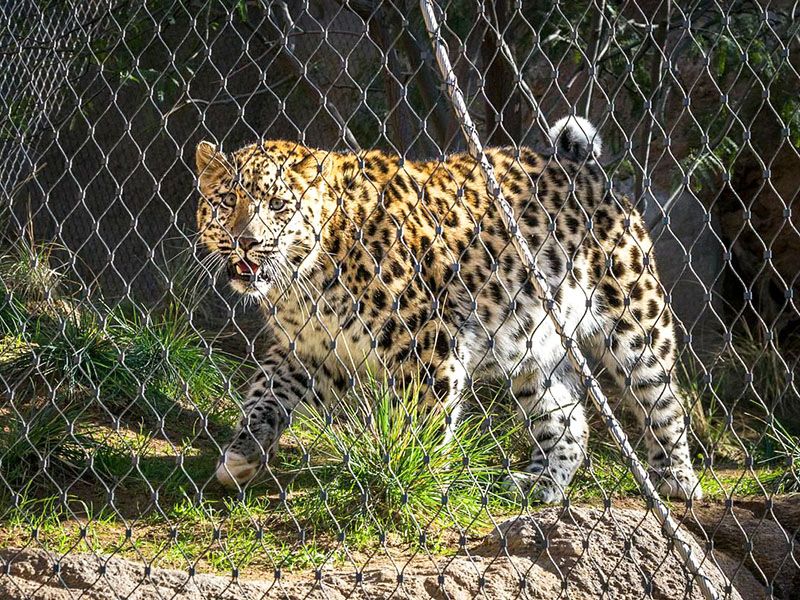

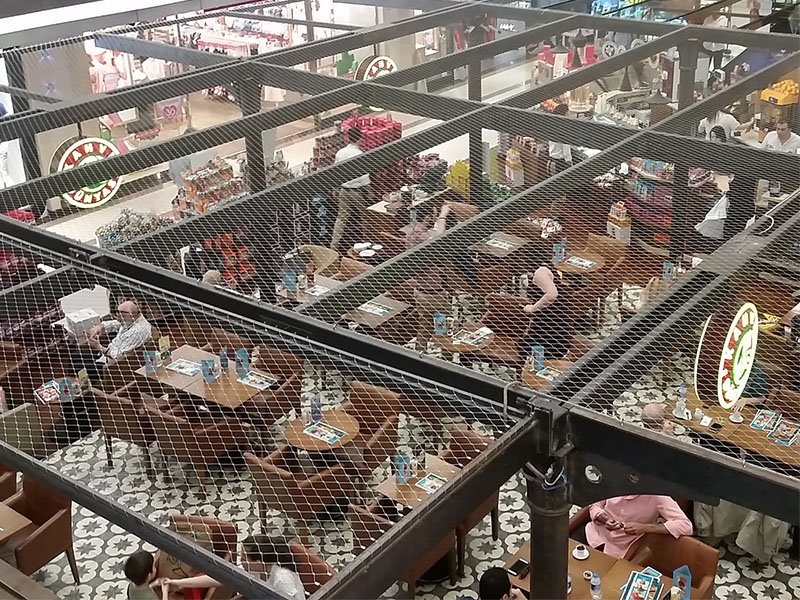

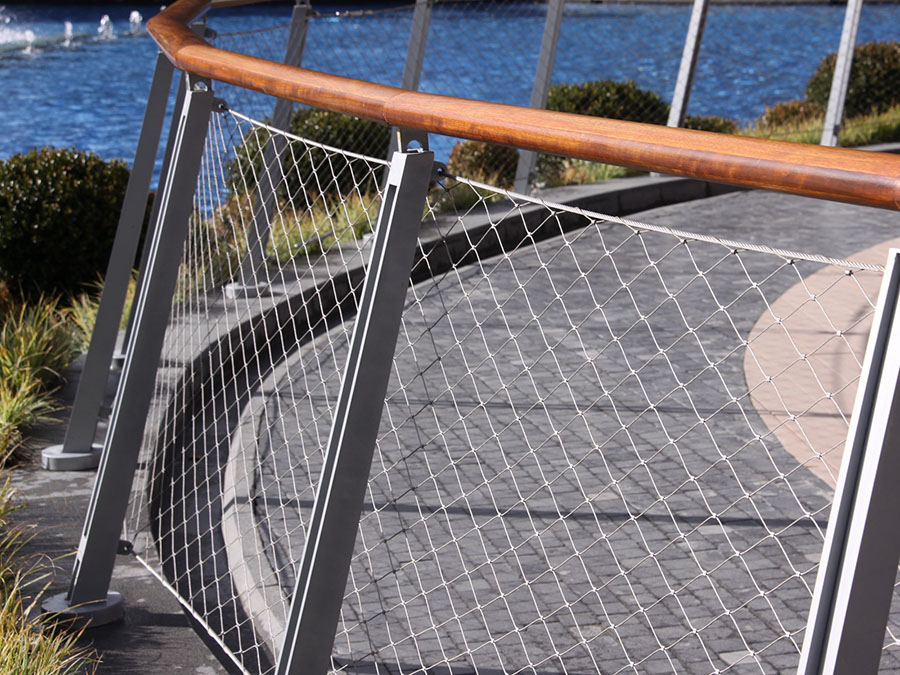

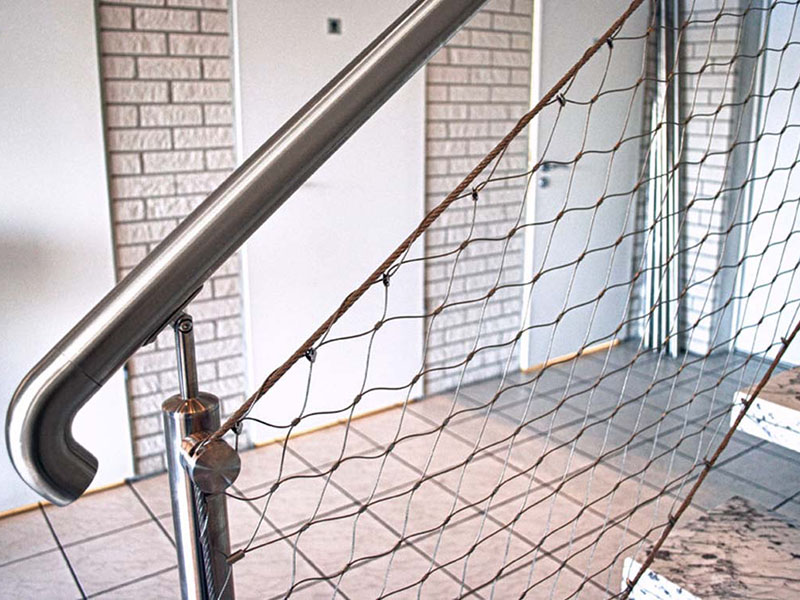

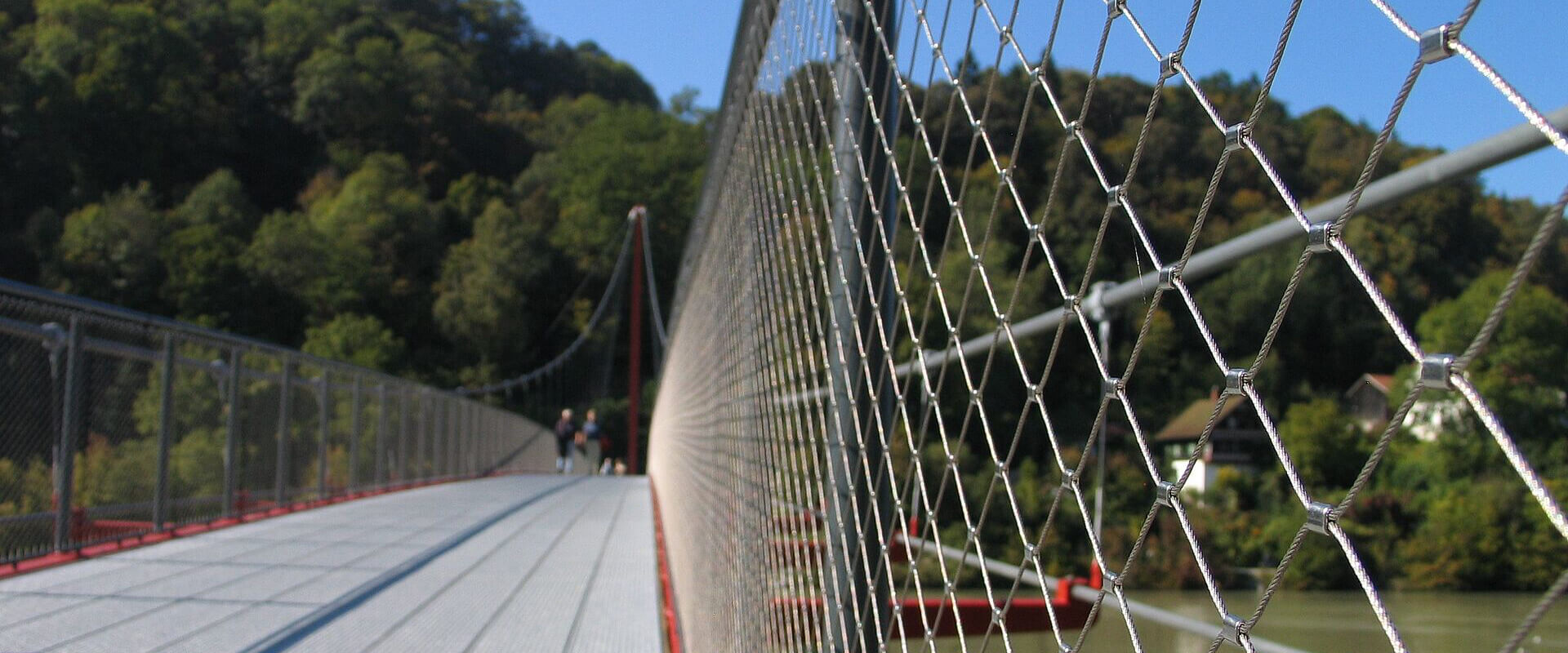

Diamond hole pattern is often used by designers in the field of decoration. It has high safety performance and is widely used in various fields, such as indoor staircase decoration, building outdoor wall decoration, zoo, railing, suspension bridge, anti-theft backpack protector.

Architectural Rope Mesh Styles

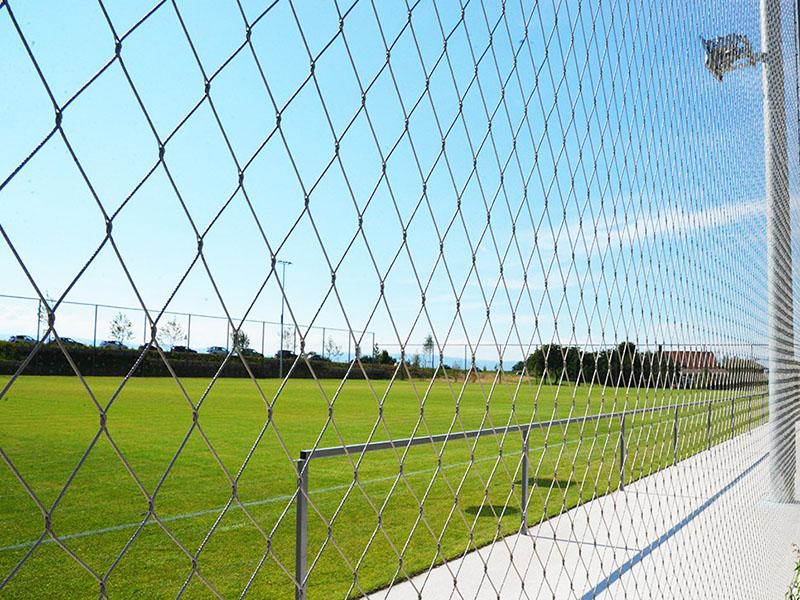

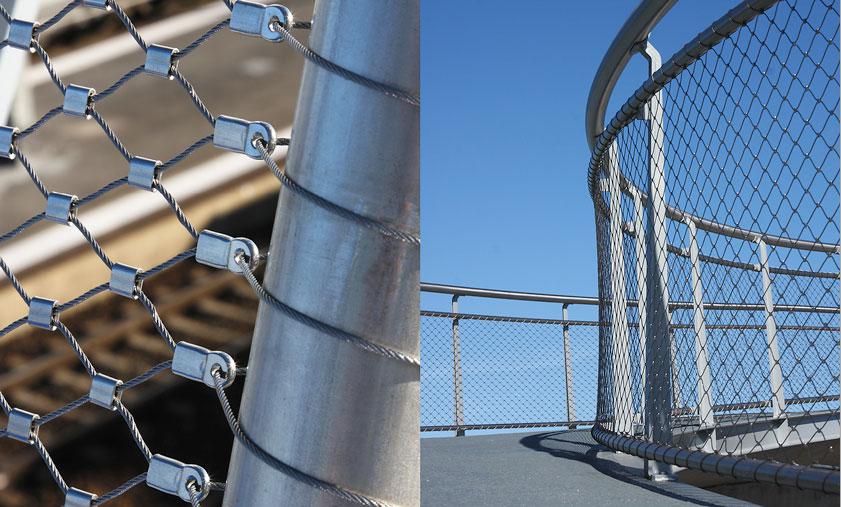

Applications For Protection & Decoration

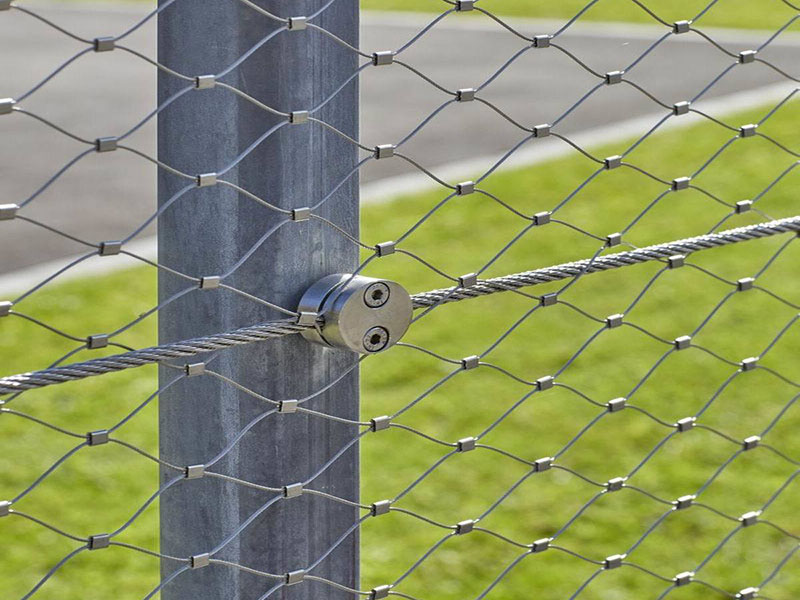

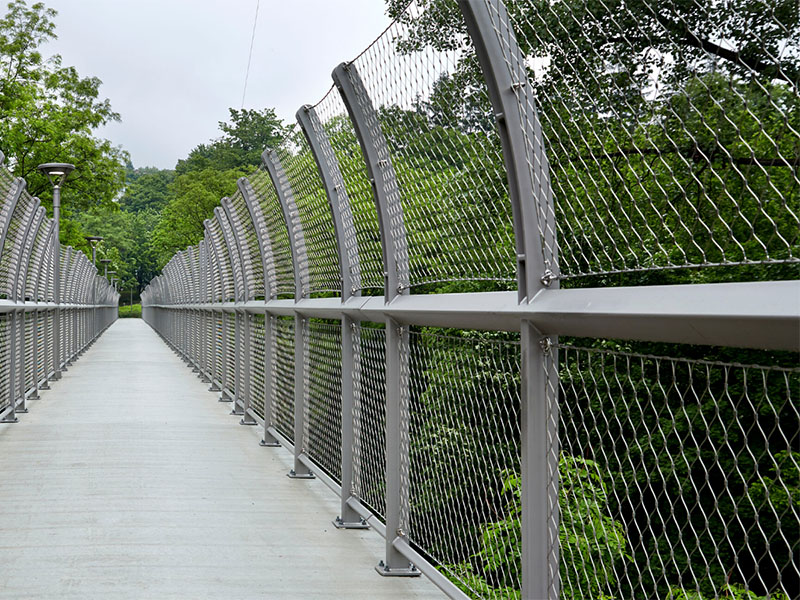

rope net fence

REQUEST A QUOTE

Hightop has been engaged in steel rope nettings for more than 15 years and has accumulated rich production experience. It is a professional manufacturer of R&D, production and installation of rope nets.

Please contact us by the contact form below, we’ll get back to you ASAP.
